Tee Fittings

Fluoropolymer Tee Fittings Manufacturer – Miracle

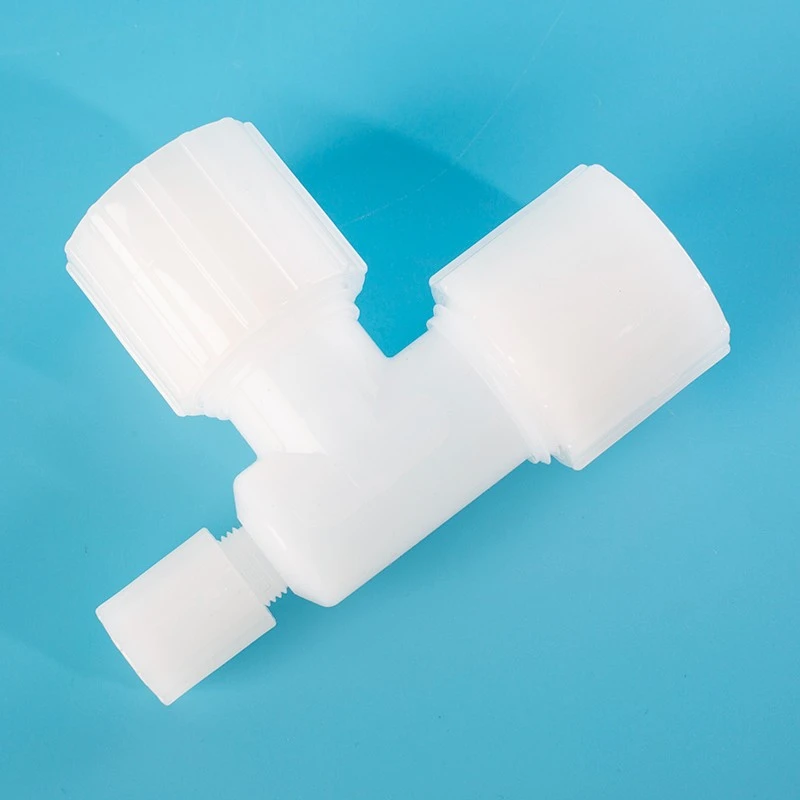

Miracle manufactures high-purity fluoropolymer fittings designed to connect three tubing sections, creating reliable branch connections and optimizing fluid distribution in demanding industrial piping systems. The standard portfolio includes union tees for mechanical joints, reducing union tees for multi-size transitions, and weld tees for seamless welded systems. Miracle combines in-house research, precision manufacturing, and technical sales to guide global buyers through product selection, specification review, and custom engineering.

Why Global Buyers Choose Miracle

Advanced Material Specialization

We supply premium PFA, PTFE, and PVDF components engineered to withstand extreme chemical environments and high-purity fluid standards.

Rigorous Specification Review

Every inquiry undergoes a detailed engineering check covering port geometry, material grade, and operating limits before order confirmation.

Customization Capabilities

We evaluate client-submitted technical drawings and unique dimension specifications to deliver tailored solutions for complex industrial setups.

End-to-End Quality Service

From raw material sourcing and precision production to secure global logistics, our team ensures seamless communication throughout the order lifecycle.

Technical Specifications

Parameter	Specification Details
Available Materials	PFA, PTFE, PVDF, ECTFE
Size Range (Imperial)	1/4" to 1-1/2" Outer Diameter
Size Range (Metric)	6 mm to 32 mm Outer Diameter
Operating Temp (PFA)	-200°C to +260°C (-328°F to +500°F)
Operating Temp (PTFE)	-196°C to +260°C (-320°F to +500°F)
Operating Temp (PVDF)	-40°C to +140°C (-40°F to +284°F)
Max Pressure Rating	Up to 1.0 MPa (150 psi) at 20°C (Size/Temp Dependent)
Wetted Surface Finish	Ra < 0.4 µm (Smooth, Non-Porous Profile)
Regulatory Compliance	USP Class VI, FDA 21 CFR 177.1550, SEMI F57

Key Performance Features

Absolute Chemical Inertness: Impervious to strong mineral acids, organic solvents, oxidizing agents, and strong bases that degrade conventional metallic or engineering plastic fittings.

Ultra-Low Extractables: Molecular structure prevents ion leaching and organic outgassing, preserving ultra-pure water (UPW) resistivity and semiconductor process chemical purity.

Non-Wetting Flow Path: Extremely low surface energy prevents media buildup, scaling, and biological growth within the internal branch junction.

Thermal Shock Resistance: Retains tensile strength and impact resistance during rapid thermal fluctuations and high-temperature steam sterilization cycles.

Material Options

PFA (Perfluoroalkoxy): Combines the thermal window of PTFE with melt-processability. Features universal chemical resistance, optical clarity for visual flow monitoring, and minimal trace metal extractables.

PTFE (Polytetrafluoroethylene): Offers the widest operating temperature range and lowest friction coefficient of any fluoropolymer. Provides absolute resistance to aggressive industrial chemicals.

PVDF (Polyvinylidene Fluoride): A tough, abrasion-resistant polymer offering high mechanical strength, UV stability, and reliable performance with halogens and acid waste streams.

Industrial Applications

Chemical Processing Plants: Creates reliable, corrosion-proof branch connections in aggressive chemical transfer, blending, and distribution networks.

Semiconductor Manufacturing: Deployed in ultra-pure water (UPW) and high-purity chemical delivery systems meeting stringent cleanliness criteria.

Pharmaceutical & Laboratory Equipment: Connects contamination-sensitive fluid paths in lab analyzers, biopharmaceutical skids, and dosing equipment.

General Industrial Fluid Handling: Optimizes fluid distribution and routing across heavy-duty industrial processing and machinery manufacturing lines.

Customization & Engineering Review Options

01/

Port Dimension Customization: Specify custom main and branch dimensions, thread types, or transition geometry with accompanying technical blueprints.

02/

Tailored Material Selection: Request specific fluoropolymer grades matched precisely to your thermal, mechanical, and chemical exposure limits.

03/

Connection Geometry Matching: Adapt union or weld interface designs to integrate smoothly with your existing proprietary hardware or tubing standards.

04/

Comprehensive Project Intake: Submit required quantities, projected repeat demands, and packaging instructions to initiate a formal feasibility study.

Connection Methods

Flare Connection: Utilizes a flared tube end compressed against a conical body via a retaining nut, resisting thermal shock and vibration without torque loss.

Compression Fitting: Employs a front and back ferrule design that grips the tubing mechanically, ensuring a leak-free seal without twisting during installation.

Socket & Butt Weld: Thermal fusion joining methods that create a permanent, seamless monolithic piping system for high-pressure or hazardous lines.

Threaded Connection: Precision-machined NPT or ISO parallel threads for secure connection to metallic or rigid plastic equipment adapters.

Quality Control & Assurance Standards

Specification Matching

Incoming and outgoing products are systematically cross-referenced against approved engineering drawings and client purchase orders.

Dimensional Inspection

Critical interface measurements, wall thicknesses, and port tolerances are verified using calibrated measuring instruments.

Visual & Surface Verification

Thorough checks are performed to ensure smooth inner walls, free of burrs, contamination, or surface defects.

Traceability Documentation

Material test reports and quality compliance records can be provided upon request according to project contract terms.

Packaging & Logistics

Cleanroom Sealing

Individual components sealed in heavy-gauge antistatic polyethylene bags inside a controlled environment to prevent ambient contamination.

Protective Cartons

Multi-layer corrugated packaging with custom foam inserts or cell partitions to prevent thread deformation and transit damage.

Global Freight Support

Partnered with reliable air and ocean carriers offering expedited delivery and complete customs documentation.

Frequently Asked Questions

Q: What is the maximum operating pressure for PFA tee fittings at elevated temperatures?

A: Working pressure decreases as operating temperatures rise. PFA fittings retain full pressure ratings up to 20°C, with allowable pressure scaling down proportionally up to their maximum service temperature of 260°C. Specific derating curves are available in our data sheets.

Q: Can fluoropolymer tee fittings be reused after disassembly?

A: Flare and compression style fittings can generally be reused if sealing surfaces and ferrule components show no signs of scoring, deformation, or thermal degradation. Welded tees are permanent installations and cannot be disassembled.

Q: Are your fluoropolymer fittings free of plasticizers and fillers?

A: Yes. All standard fittings are molded or machined strictly from virgin unpigmented fluoropolymer resins containing zero plasticizers, slip agents, or pigment additives.

Q: What is the standard lead time for standard versus custom tee fitting orders?

A: Standard catalog sizes stocked in our warehouse typically ship within 3 to 5 business days. Custom engineered configurations or large production runs require 2 to 4 weeks depending on tooling requirements.

Request a Quote & Contact Us

Quotation Requirements Checklist
To accelerate your inquiry, please provide:
Product Type: Union Tee, Reducing Union Tee, or Weld Tee
Material: PFA, PTFE, PVDF, or preferred grade
Port Dimensions: Main-line and branch specifications
Connection Method: Union or welded design
Operating Conditions: Fluid type, concentration, temperature, and working pressure
Volume: Required quantity and estimated repeat demand
Documentation: Technical drawings or specialized inspection requirements
Get in Touch with Miracle
Contact our engineering and sales team today to discuss your project requirements, review technical specifications, and receive a customized quotation.
